Home > Products > Ventilation & Air Treatment > Ventilation Duct

ISO Air Conditioner Aluminum Return Damper Valve

FOB Price:

US 31.06-35.6 / Piece

Min.Order Quantity:

30 Piece/Pieces

Supply Ability:

100 Piece/Pieces per Month

Port:

Xiamen

Place of Origin:

Fujian, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

XMZXL

Products Model:

ZXL-FF-013

Products Details
Company Profile

Quick Details

Brand Name: XMZXL

Model Number: ZXL-FF-013

Place of Origin: Fujian, China (Mainland)

Packaging & Delivery

Packaging Details: Exported cartons and wooden pallet
Delivery Detail: Shipped in 7 days after payment

Specifications

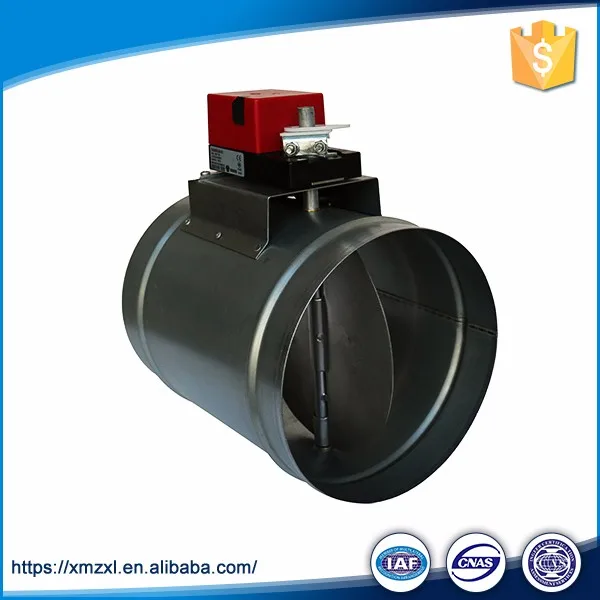

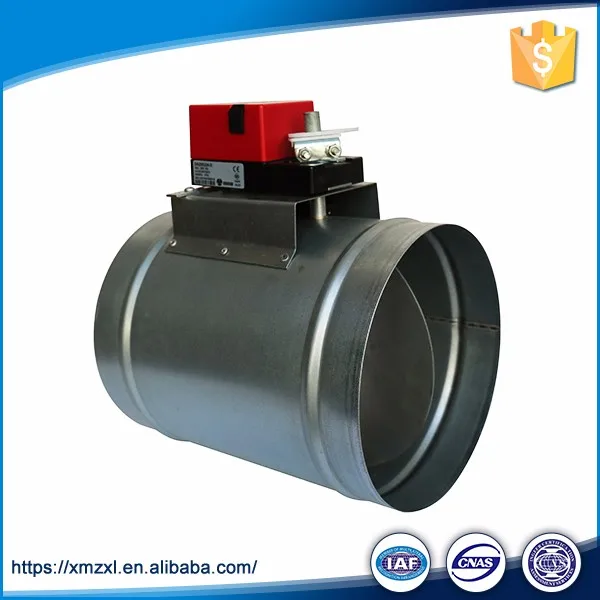

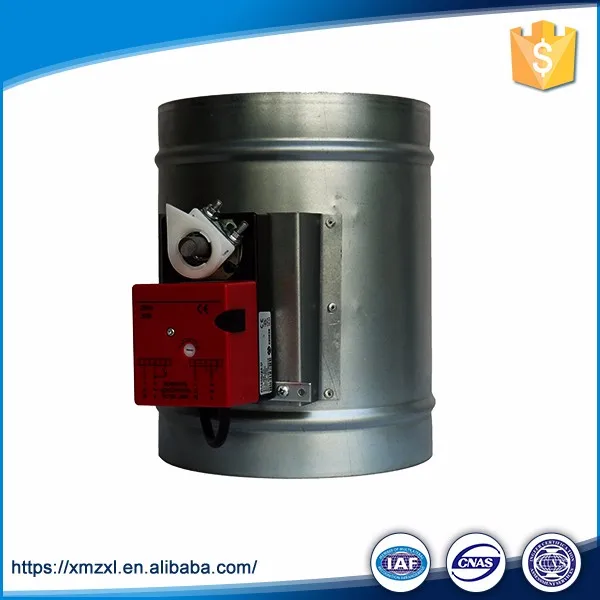

ISO Air Conditioner Aluminum Return Damper Valve

Product Description

The electrical control damper shall be installed in the places of fresh air,supply air,return air and exhaust air,and its openness and operating are subject to the signal from DDC after analyzing the internal and external temperatures for the purpose of energy saving.

Operation and maintenance and train manual

It is installed in Chiller room and interlocked with axial fan.In Summer,when the axial fans are running,the damper are also running to exhaust the air produced by chillers;in Winter,the axial fan don't run ,and the dampers also stay closed to keep the temperature insides.

FEATURES:

* Galvanised Steel

* Service life: 80000times

* Round Motorized Volume Control Damper

* Size: customized made

Basic information:

Diamter	100,150,200,250,300mm
Material	Galvanised steel
Blade	Galvanised steel with black gasket
Actuator	AC220V or AC/DC24V
Running time	30s(90°)
Control signal	2-point or 3-point
Service life	80000times
Ambient humidity	5%-95%RH
Torque	2,4,6,8Nm
Direction of rotation	Manual regulation

Logistics information:

Processing time	7 days after receipt of payment
Port	Xiamen
Supply ability	30 pcs per month
Packing deytails	Exported cartons and wooden pallet. Round Motorized Volume Control Damper

Xiamen Zhongxinglong Air Conditioning Equipment Co., Ltd. is a specialized manufacturer of air conditioning equipment.

Located in the eastern Chinese seaport of Xiamen city, one of the special economic zone opening harbors to foreign trade at the southeast coast of China, we enjoy convenient transportation access. We were established in 1999 and are a non-governmental hi-tech enterprise with the right to independently import and export.

Our company has always been engaged in the research and development of hi-tech products, having our own technical center and test facilities. In addition, we have established cooperative relationships on technical matters with research institutes and universities in order that we develop new and better materials and air conditioning products. The group of professional technicians we have recruited is experienced and highly skilled.

With years of experience, we have concentrated on developing a comprehensive range of ventilation products. Through the efforts of our research and development department and inspection department, our company has gained various intellectual properties to protect our designs both in the domestic and the overseas markets.

We are looking forward to building positive and beneficial links with the companies around the world. We warmly welcome you to contact us to begin discussions on how we can bring this into being.
